Printed Structural Nodes


Project 1. Phyllotaxis Gridshell


At Laufs Engineering Design, I worked closely with engineers throughout the day, where we rejected the practice of "engineering after design" prevalent in the architecture industry. My work covered facade detailing, structural design and programming printable structures.

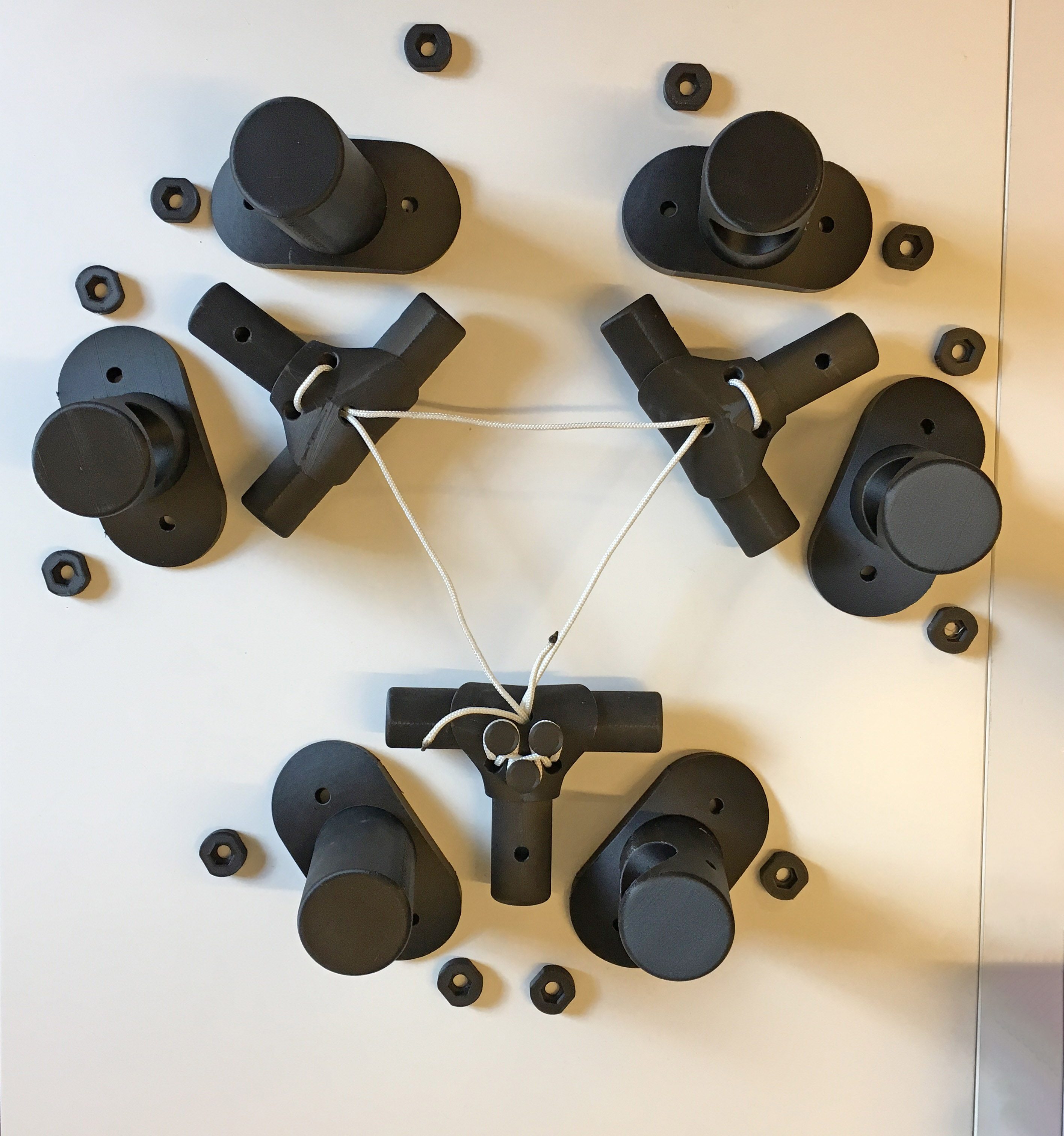

I lead the firm's efforts to develop structurally-performing 3D printed connections for an amorphous grid shell—a task that involved command of 3D and algorithmic tools and a hands-on understanding of structural principles. The aim was to concentrate as much compelxity as possible into the structural nodes thus allowing connecting members to be low-cost stock materials and because the printer doesn’t “care” about repeatability or economies of scale, each node was unique. I wrote a program in Grasshopper that generated nodes from a centerline geometry model. My job also included fabrication and assembly of the grid shell.












Project Team:

Design direction: Will Laufs
Node design: Jeffrey Montes and Patrick Doyle
Grid shell FEM: Alexey Nefedov
Parametric model: Jeffrey Montes
Fabrication: Jeffrey Montes & Patrick Doyle

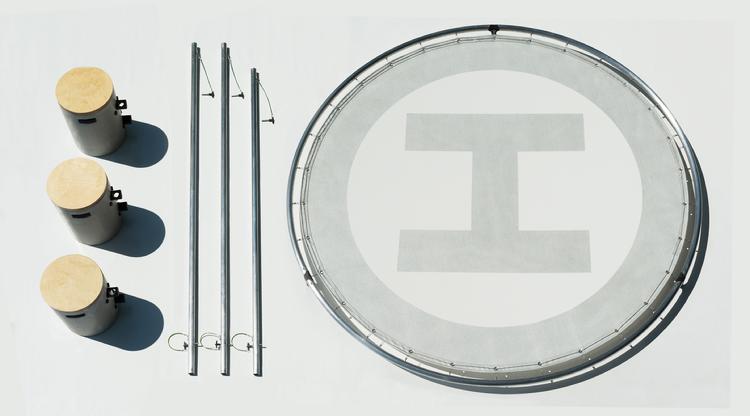

Project 2: Circle Shade: 2πR4


Together with Eva Jensen Design, LaufsED designed the winning entry for the anual Socrates Sculpture Park Folly/Function competition, which provides a small budget to design and fabricate a functional object for the park.

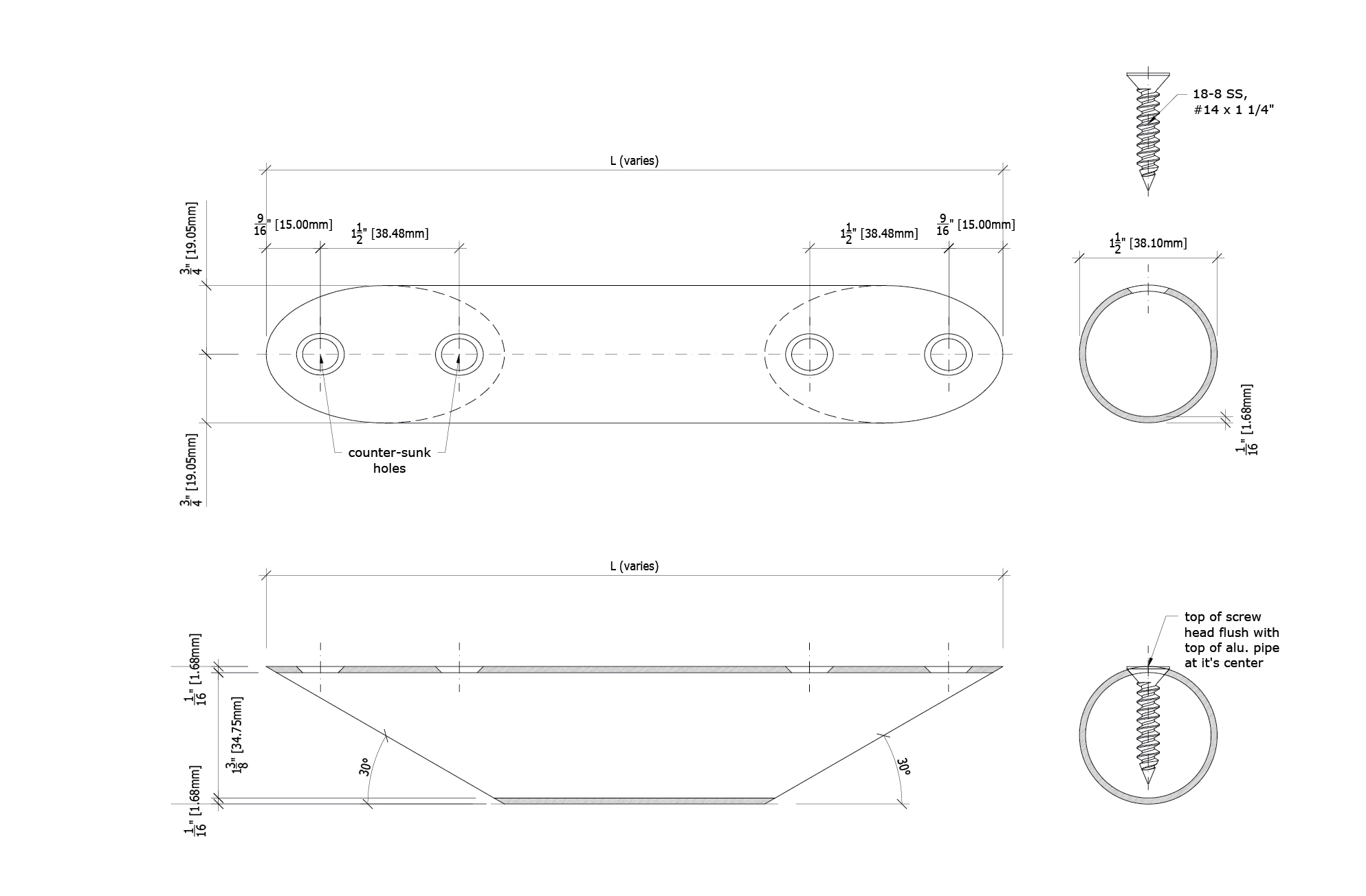

My work focused on the structural node connections the alluminum pipes.











Project Team:

LaufsED - Jeffrey Montes, Will Laufs
Eva Jensen Design - Eva Jensen + her assistant designer who’s name I completely forgot but who was a pleasure to work with.
