Chiris
handmade transforming sculptureclient: Columbia University
my role/scope: design, construction, fabrication, assembly
type: student work
my role/scope: design, construction, fabrication, assembly
type: student work

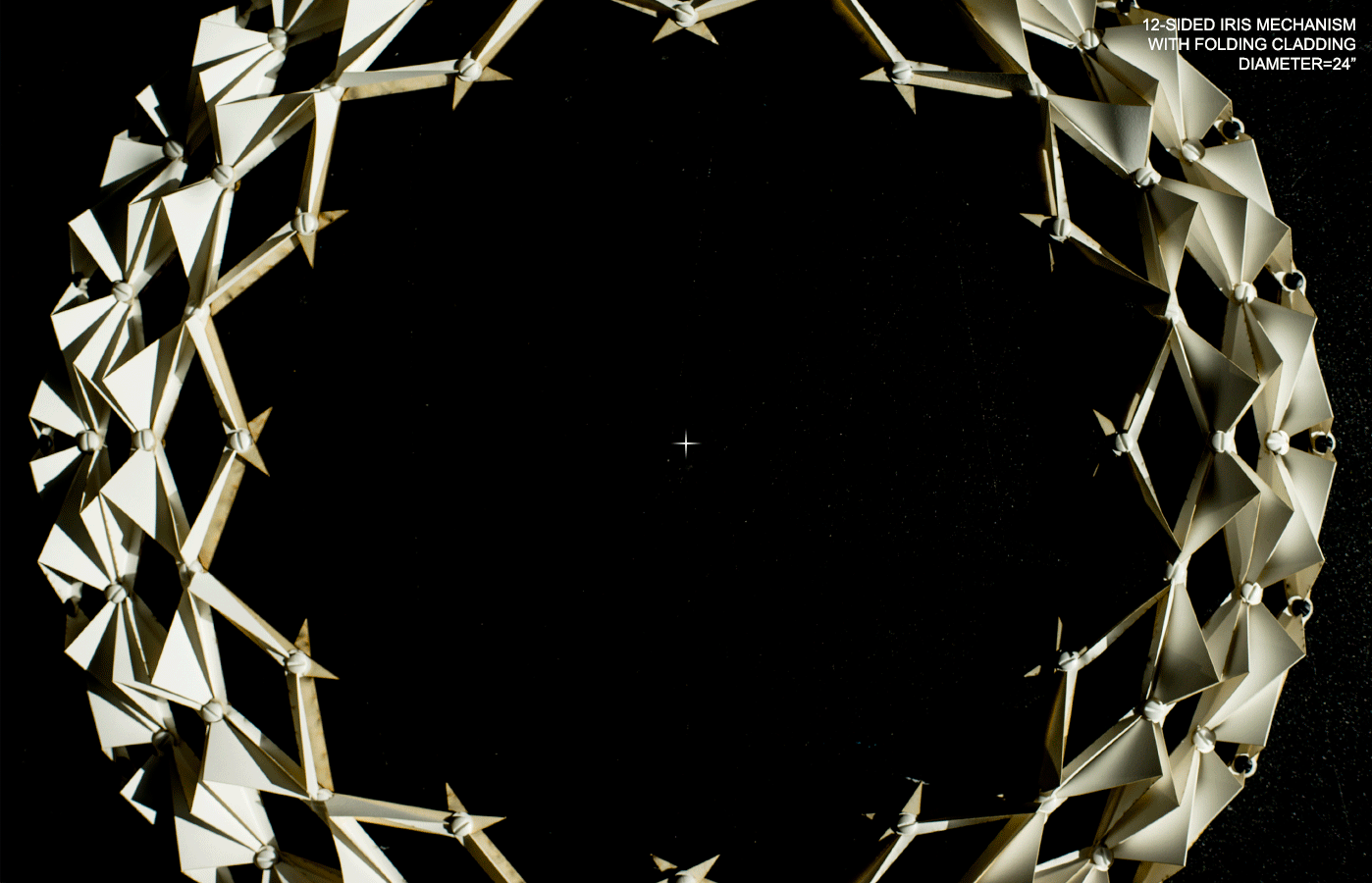

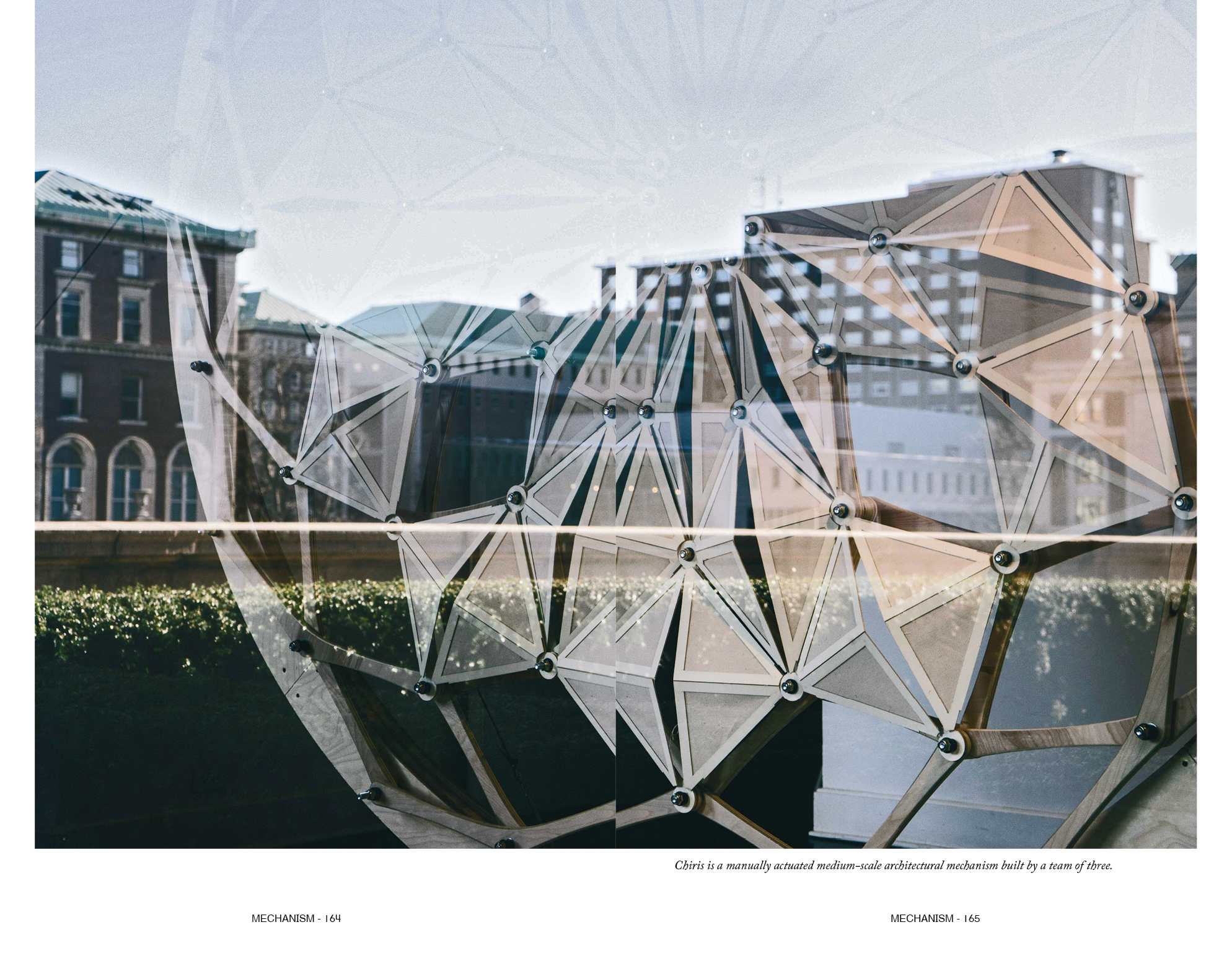

Chiris [“chai-ris”] is a transforming sculpture. The aim is to imagine how the technology and experience of an aperture mechanism could be scaled up and translated into architecture. An innovative, folding origami skin adds a rich third dimension and a shifting pattern of light and shadow.
![](https://freight.cargo.site/t/original/i/0c2b83c7e8e01e18459a4f01287c36a5d486c8a36a050b440d0aed249fb48330/jmcpddv_origamiIRIS_1500.gif)
![](https://freight.cargo.site/t/original/i/fa05e1f4adbb67e2059440b8fc5d6161e226400e32a75a0d54973c919e4e1739/danae_1.gif)
Chiris is comprised of over 100 wooden arms; each CNC milled, hand-routed, sanded smooth and completed with plastic sleeve inserts. Seven unique joint details, which occur in a pattern throughout, were needed to keep the delicate cladding in-plane as well as to keep cumulative friction minimal.

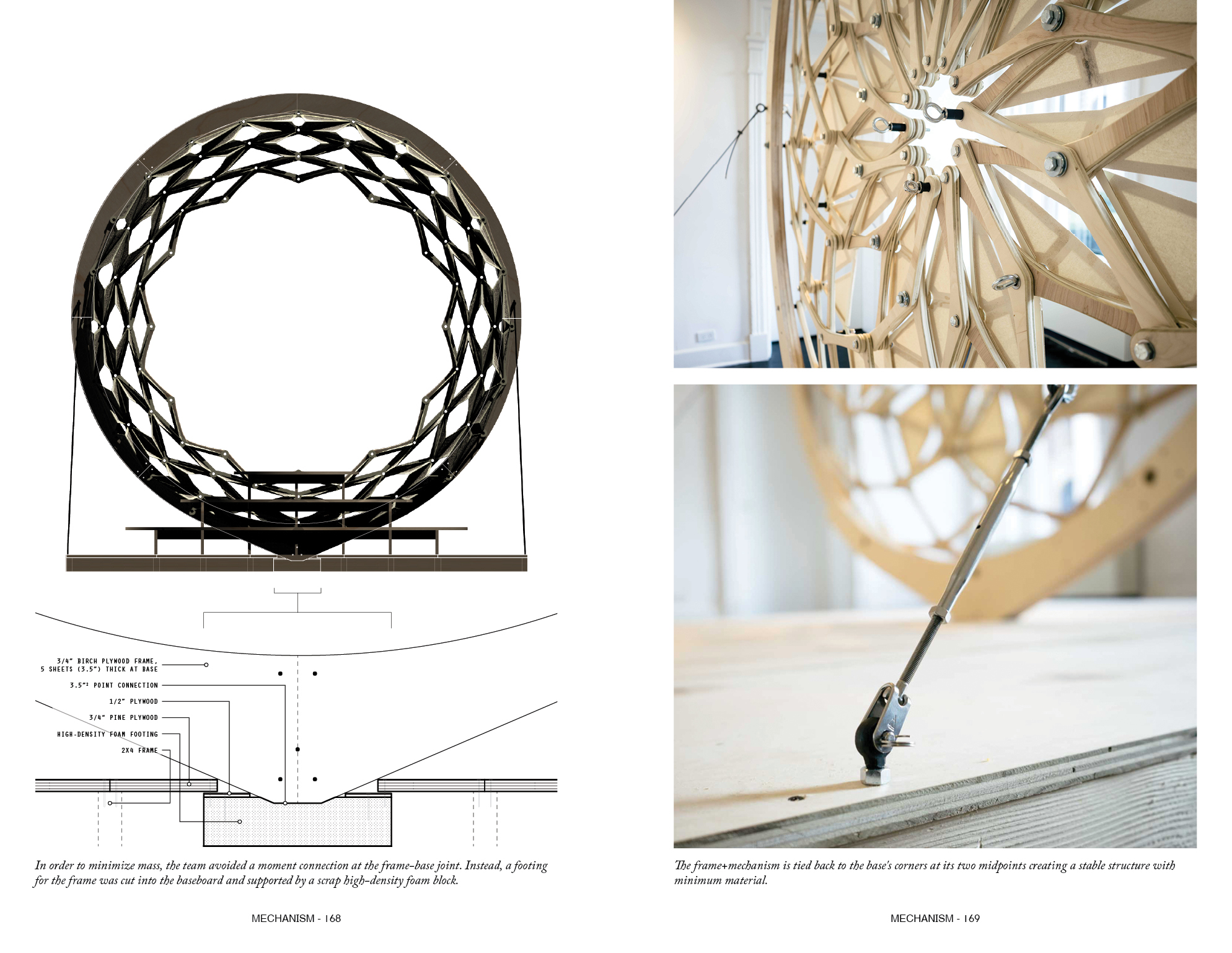

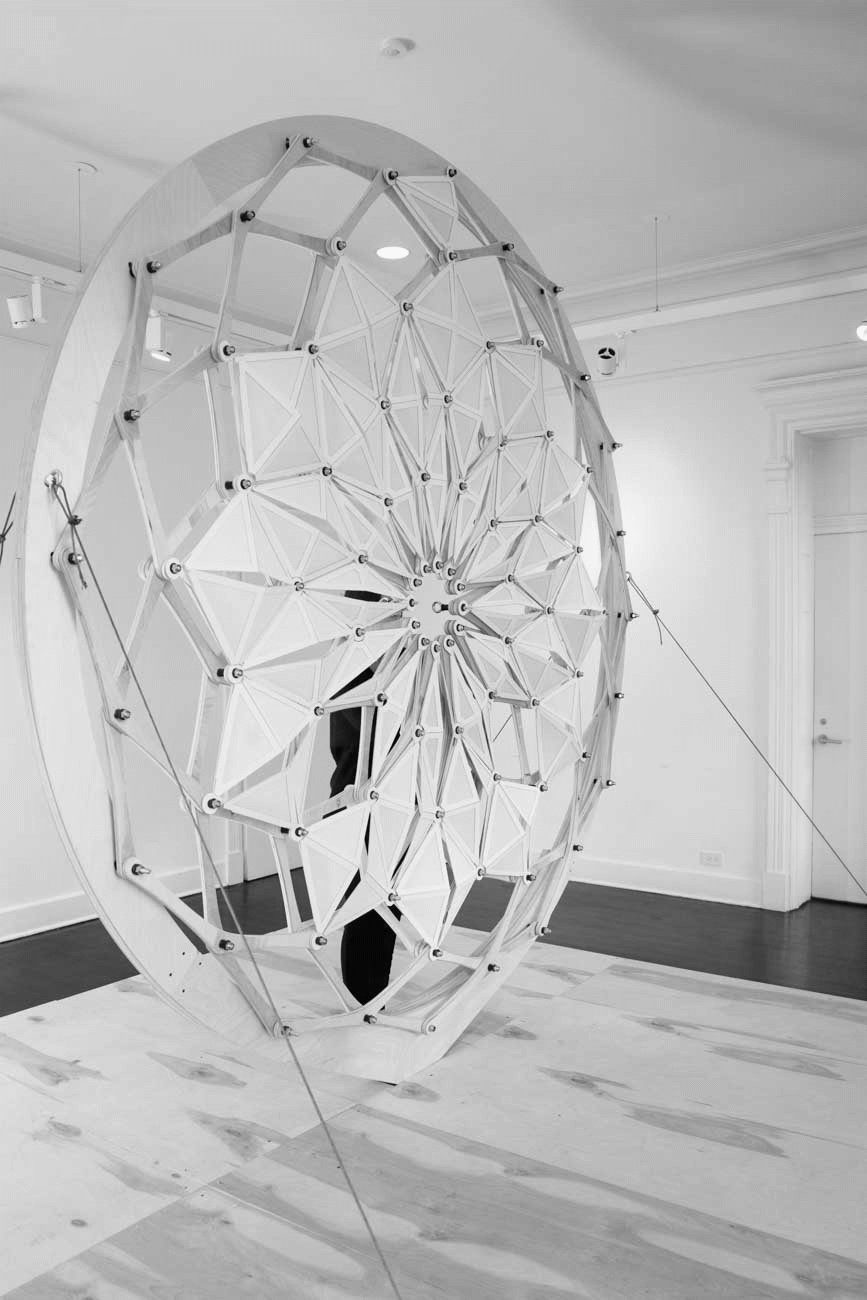

The supporting structure consists of a 10’ circular frame on a 10’ square base with steel cables tied back to the square base’s corners. A moment connection at the frame-base joint was avoided by utilizing a high-density foam block cut into the baseboard.
Video: Chiris with Jeff
Video: Chenyu with origami cladding
